UPC1342V 150w * 2 dual channel HiFi class A and B post-stage power amplifier

Seller Info

wj_88

Price

Array ( [goods_id] => 7359851 [shop_id] => 734315 [cate_id] => 3681 [source_id] => 1 [num_iid] => 543707933847 [cid] => 50002928 [lang_change] => y [detail_url] => http://item.taobao.com/item.htm?id=543707933847 [pic_url] => //img.alicdn.com/imgextra/i4/20630408/TB2ocEdtQyWBuNjy0FpXXassXXa_!!20630408.jpg [item_imgs] => Array ( [0] => //img.alicdn.com/imgextra/i4/20630408/TB2ocEdtQyWBuNjy0FpXXassXXa_!!20630408.jpg [1] => //img.alicdn.com/imgextra/i1/20630408/TB2sWr2bbVkpuFjSspcXXbSMVXa_!!20630408.jpg [2] => //img.alicdn.com/imgextra/i1/20630408/TB2HJ2ZbbtlpuFjSspoXXbcDpXa_!!20630408.jpg [3] => //img.alicdn.com/imgextra/i4/20630408/TB2nCigbH4npuFjSZFmXXXl4FXa_!!20630408.jpg [4] => //img.alicdn.com/imgextra/i2/20630408/TB2SksypHuWBuNjSszgXXb8jVXa_!!20630408.jpg ) [item_weight] => [item_size] => [num] => 2382 [price] => 23.429 [post_fee] => 0 [express_fee] => 9.00 [ems_fee] => 0.00 [has_discount] => y [freight_payer] => buyer [created] => 2020-04-21 11:36:25 [modified] => [source] => taobao [title] => UPC1342V 150w * 2 dual channel HiFi class A and B post-stage power amplifier [nick] => wj_88 [rateimg] => /img/icon_tmall.gif [skus] => Array ( [3272893424178] => Array ( [sku_id] => 3272893424178 [price] => 1.98 [properties] => 1627207:2380379685 [quantity] => 796 [org_price] => 1.98 ) [3272893424179] => Array ( [sku_id] => 3272893424179 [price] => 12.54 [properties] => 1627207:2401801347 [quantity] => 740 [org_price] => 12.54 ) [3272893424180] => Array ( [sku_id] => 3272893424180 [price] => 23.429 [properties] => 1627207:2441605741 [quantity] => 806 [org_price] => 23.429 ) [3766138427344] => Array ( [sku_id] => 3766138427344 [price] => 4.62 [properties] => 1627207:439732619 [quantity] => 30 [org_price] => 4.62 ) [4487118631404] => Array ( [sku_id] => 4487118631404 [price] => 95.697 [properties] => 1627207:7284408121 [quantity] => 10 [org_price] => 95.697 ) ) [prop_imgs] => Array ( ) [props] => Array ( ) [promo_name] => [promo_price] => 1.98 [promo_sku_price] => Array ( [3272893424178] => 12 [3272893424179] => 76 [3272893424180] => 142 [3766138427344] => 28 [4487118631404] => 580 ) [promo_end_time] => 2100-01-01 01:01:01 [props_name] => Array ( [1627207] => Color Classification [2380379685] => One printed board [2401801347] => Without large electrolysis, large tube kit [2441605741] => ON tube finished board [439732619] => Matching radiator [7284408121] => Pure final machine ) [begin_amount] => 1 [desc_url] => [props_name_val] => Color Classification|One printed board|Without large electrolysis, large tube kit|ON tube finished board|Matching radiator|Pure final machine [property_alias_val] => [desc] =>

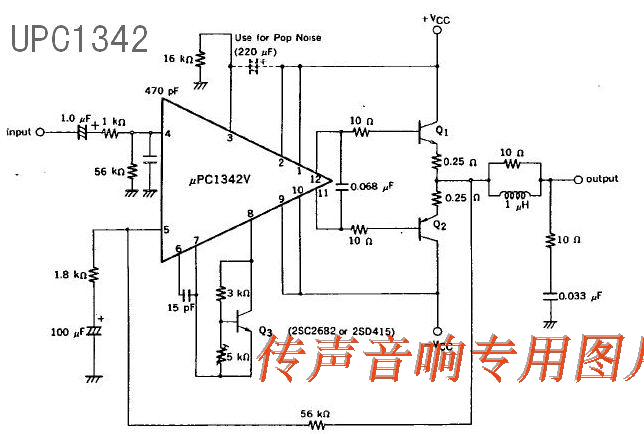

核心元件：NEC公司继性能优异的宽带低失真50W推动电路UPC1225H之后，为了适应大功率的要求又推出了新一代音响驱动IC---UPC1342V，该IC除具有UPC1225H所有优点及基本相同的外围电路外，其输出电压偏差更小（正负5MV）、电压适应范围更宽（正负20~正负70V）、推动功率更充裕，堪称烧友自制功放的首选IC。可以用两块UPC1342V组成2*150W功放电路结构如下图。（这批印板出错，有跳线，套件 PCB收到货后联系客服）

核心元件：采用全新的ON大功率管NJW0302G/NJW0281G，这对管子有着很高的测试评价。著名音响杂志《无线电与电视》2008第三期对安美森新研发推出的，该对管其声音表现与NJW3281/NJW1302很相似，声音非常浓密且颗粒感细致，密度也极高，但感觉恰到好处，声音更显成熟，伸缩有致，具有一定的湿润感和沉稳感，相当艳丽与妩媚。该对管控制力极佳，末级工作电流在较大范围内变化时的表现相当一致，不会因工作电流的大小出现音色的明显转变现象。该三极管参数：15A、250V、150W。

功率管根据你的喜好还可以使用：1、【ON】大功率管王MJL4281A/MJL4302A；2、东芝音响对管 2SC5200 2SA1943；

大电解：尼吉康50v12000uF电解，UPC1237+OMRON喇叭保护搭档，线路放大采用718电阻，音频专用耦合、退耦电容。

本板线路：采用UPC1342V直推ON大功率管的线路，线路简洁，稳定，声音十分通透。采用整流、滤波、保护、放大一体板，实用整洁美观。

甲类电流：在变压器、散热器温度允许的情况下，尽量调大静态电流吧，感受甲类功放（温暖、通透、控制力好）的动人魅力！此板调试方法： 此板左右声道有一个可调多圈电位器，用于调节功率管的静态电流（甲类电流）。此板焊接完成后 ，在通电前，先将可调电位器逆时针旋转到头（此时静态电流为0）。 进行通电试音，确认放音无问题后，再缓慢沿顺时针调节电位器，同时检测0.22欧电阻电压（如44mV 时，静态为200mA，用mV档测量功率管的E对输出也可以），将静态电流调节到需要值。注意:因为温度反馈的作用，随着散热器的温度上升，静态电流会被拉下来一点，需要多次测试、调试。

推荐电压：交流电压范围：AC25-AC36v*2，推荐将每对管静态电流调整到100mA；

输出功率：根据电源电压的不同、喇叭阻抗的不同，输出功率20-150w；当AC35v供电时，可以输出100w*2/8欧，150w*2/4欧。

印板尺寸：165*97mm；   印板2mm厚、70um铜箔（铜厚才是硬道理）；

中点电压：1mV左右；

信噪比：108dB，噪音电平：0.2mV；

配套散热器，每对管可以调到100mA；

https://item.taobao.com/item.htm?spm=a1z10.3-c.w4002-1017895944.51.wdyaKi&id=550180070414

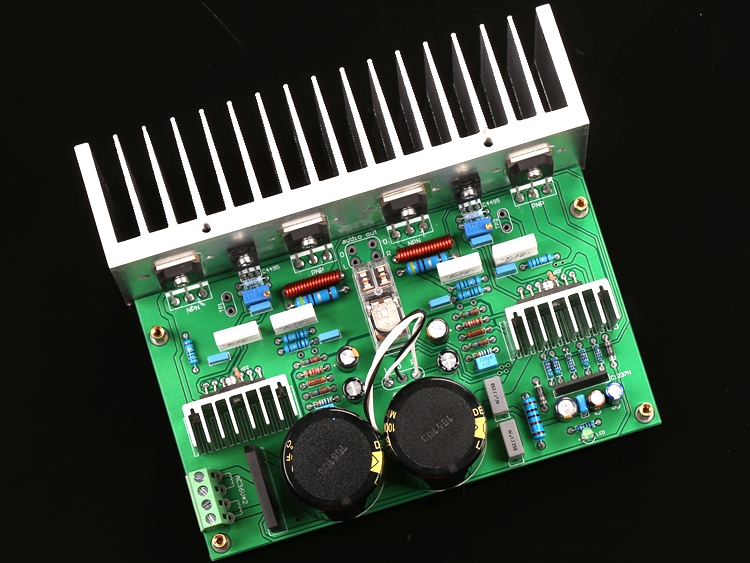

成品板如下图：成品板已经焊接、调试、测试ok（背后左右声道各有一处跳线）

散热器的图片：

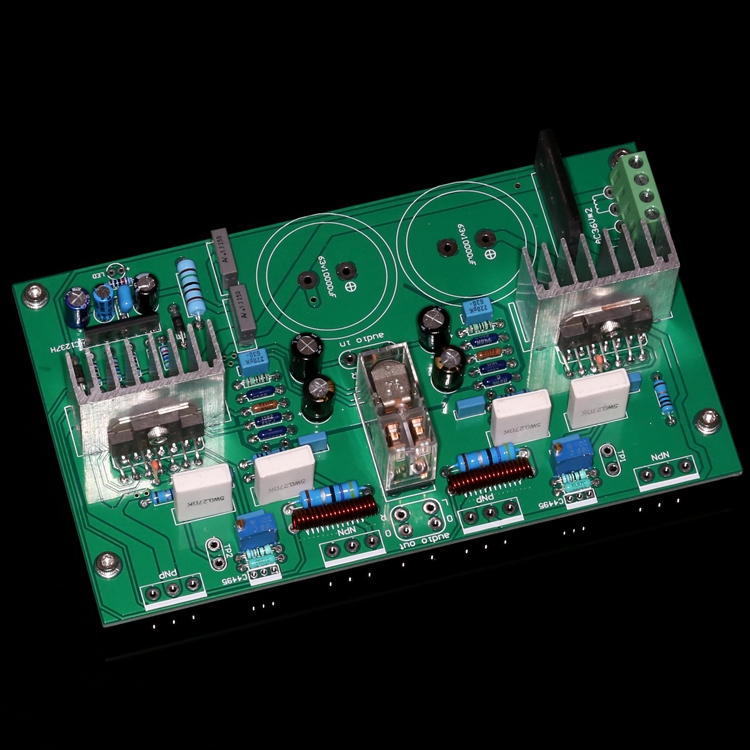

套件如下图：  下图套件仅88元，该印板空间上支持直径35mm的大电解，支持大三肯功率管，可以灵活使用各种大电解及功率管。板上的TP1、TP2是调试静态电流用，测试0.22欧电阻两边的电压（mV档），例：如要100mA静态，就调整到22mV。注意:因为温度反馈的作用，随着散热器的温度上升，静态电流会被拉下来一点，需要多次测试、调试。
